Metal Cutting Machines

Table Type & Floor Type Borer

WOTAN Rapid 5 -CNC Plattenbohrwerk

İlan No

223595

Marka

Wotan

Yıl / Model

1996 / Rapid 5

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

07.07.2025

AVITAN MASCHINEN IMP. EXP. GmbH

Telefon

0049 284 53950153

Adres

Germany / Neukirchen-Vluyn

Yetkili Kişi

Yüksel VAR

Telefon

0049 1747474419

Telefon

0532 3180391

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

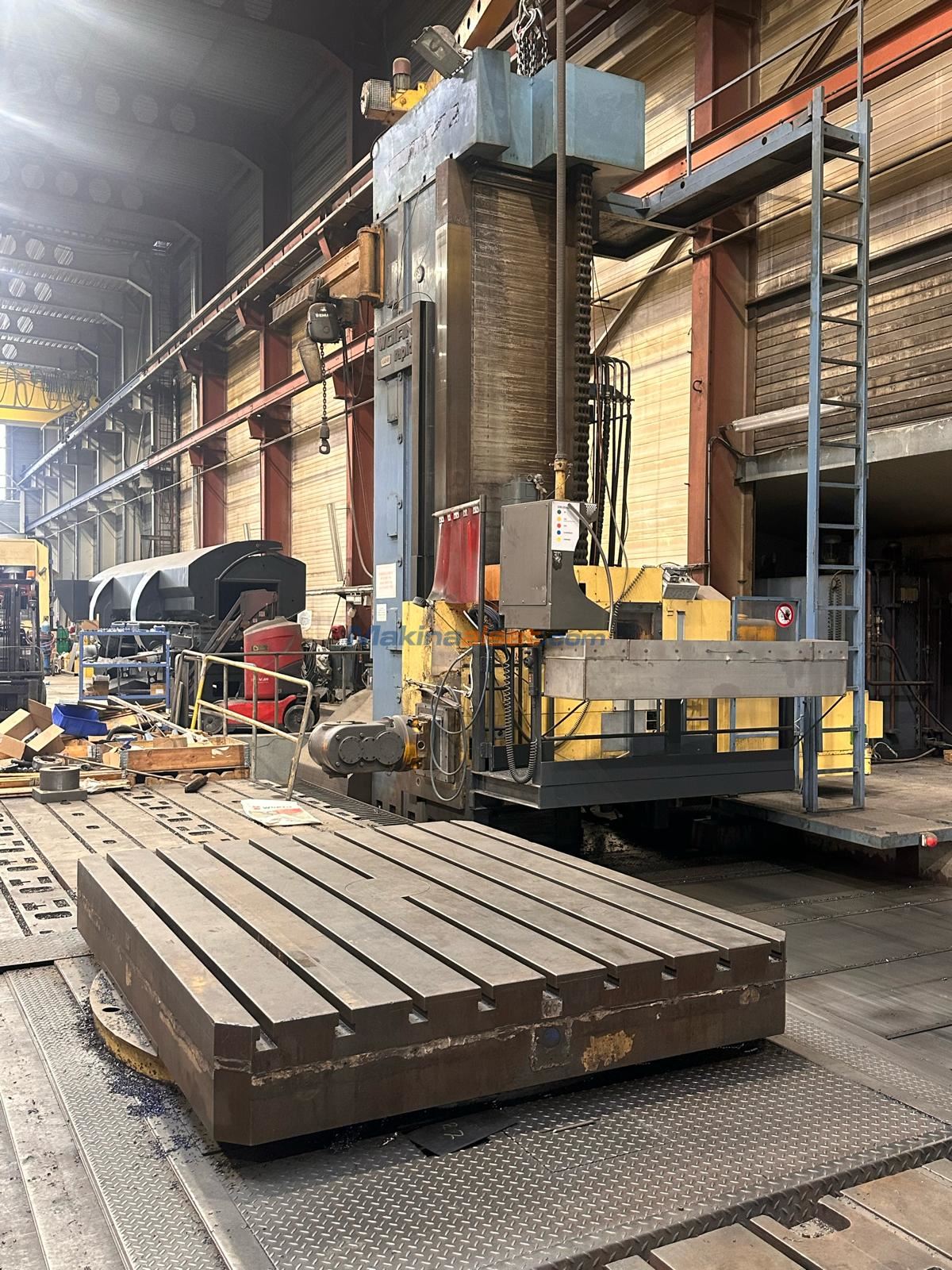

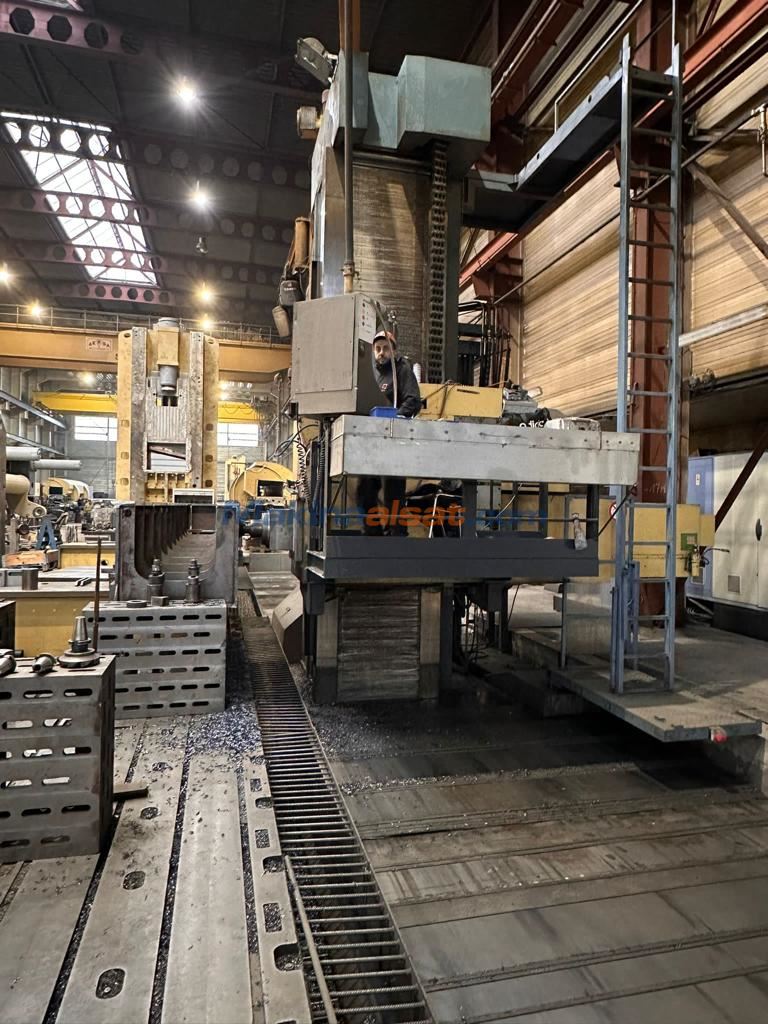

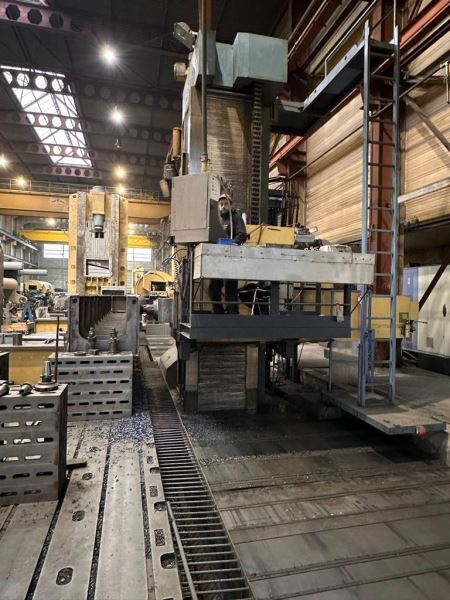

WOTAN Rapid 5 – CNC Plattenbohrwerk– Traghülse (RAM)
Baujahr :1996/2006
Spindel : 160mm ( Ø )
X-Hub : 19.000 mm
Y-Hub : 3.000 mm
W-Hub : 900 mm ( Spindel )
Z-Hub : 900 mm ( Traghülse / RAM) Abmessungen : 360 x 360 mm (Traghülse / RAM) Spindeldrehzahl : 3,2 - 1250 U/min
Eilganggeschwindigkeit : 5/10 m/min
Spindelmotor : 90 kw
Gesamtleistung : 180 kW
Gewicht der Maschine : +/- 160 T

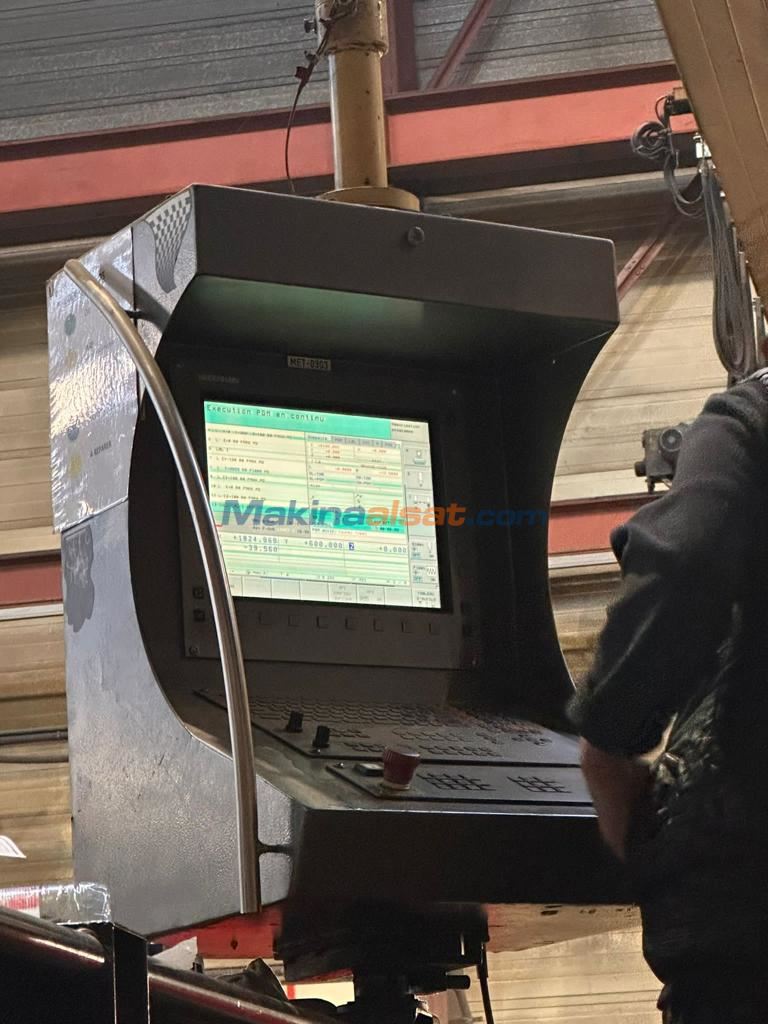

Steuerung : Heidenhain iTNC530 (2006)
Bearbeitungsköpfe : 3 stück
1. Winkelübersetzungskopf : 2500 Nm
2. Universal-Fräskopf : 1600 Nm
3. Horizontal-Fräskopf : 2500 Nm
Drehtisch : 2500 x 2000 mm – 40 T
Bodenplatte ( 9 stück) : 5.000mmx1.200mm (15.000mmx3.600mm)
Späneförderer

Makina Ankara da demonte olarak görülebilir.
