Metal Cutting Machines

5 Axis Machining Centre

Machining Centre (Universal) Quaser MF 630C

İlan No

228558

Marka

Quaser

Yıl / Model

2015 / MF 630C

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

26.05.2025

Amaron

Telefon

+42 0776115345

Adres

Czech Republic / Brno

Yetkili Kişi

Markéta Vítová

Telefon

+42 0776115345

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Catalog No. : 7212

Type: MF 630C

Producer: Quaser

Made in: 2015

Characteristic:

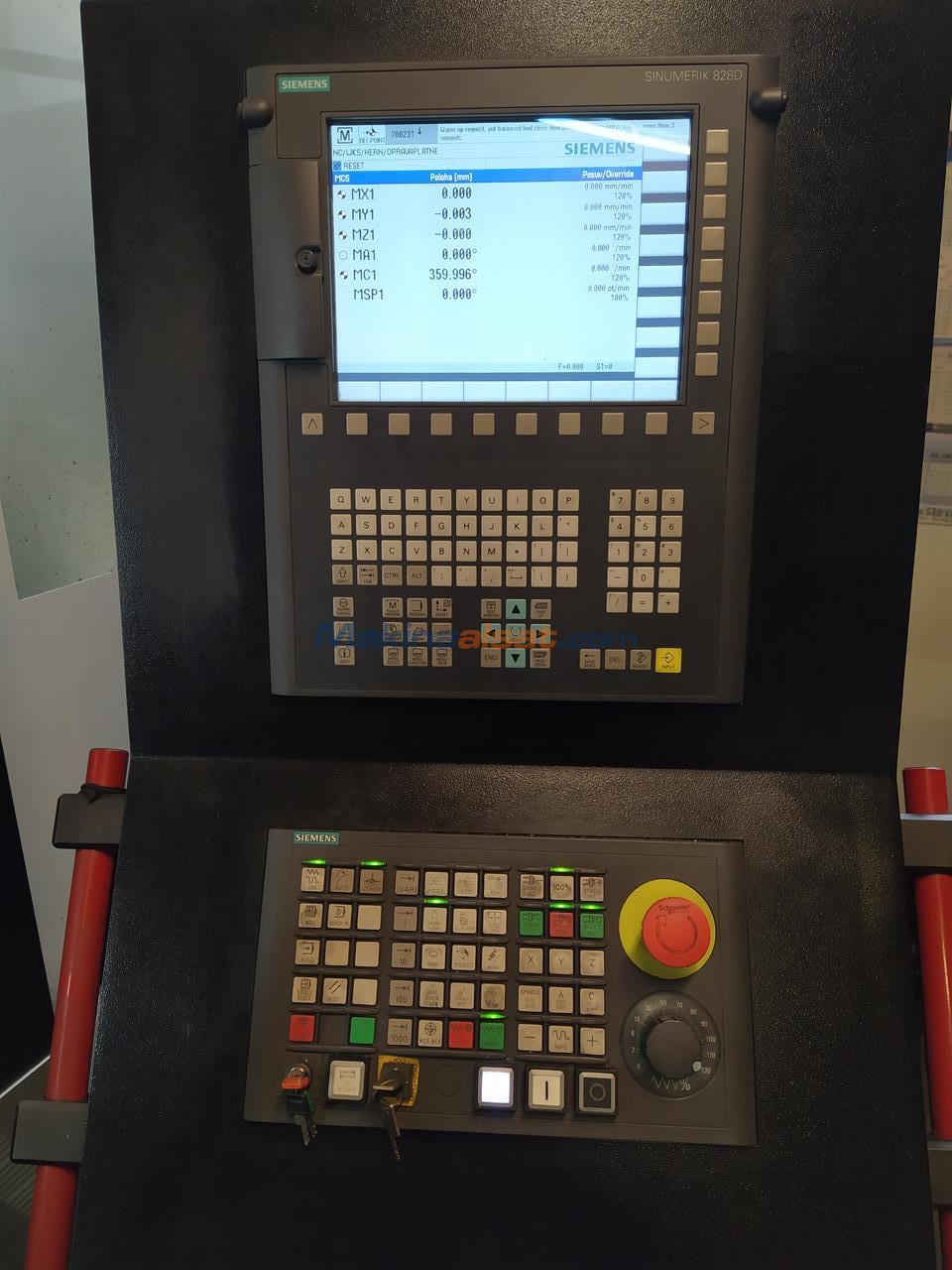

Control system: Siemens 828D

Diameter of the table: 500 mm

Number of synchronous axles: 5 pcs

Maximum rotary speed of the vertical spindle: 12000 1/min

X-Axis travels: 800 mm

Y-Axis travels: 700 mm

Z-Axis travels: 610 mm

Taper: SK 40

Maximum tool length: 280 mm

Workpiece diameter: 630 mm

Maximum tool diameter: 76.2 mm

Max. tool weight: 7 kg

Machine weight: 8750 kg

Equipment:

Tools

Workpiece probe Renishaw OMP40

ECO Cooler

Flushing gun

Rinsing of chips from the workspace

Spiral conveyor

Blowing tool heads
