Metal Forming Machines

Press Brakes

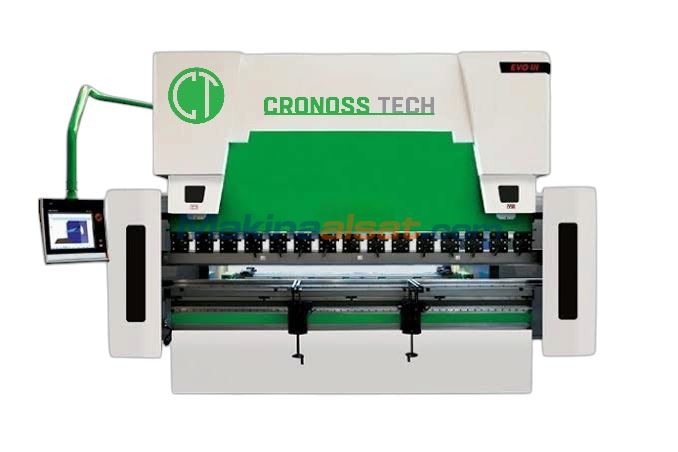

CRONOSS 100TON X 2,5MT HİDROLİK ABKANT PRES

İlan No

229589

Marka

Cronoss Tech

Yıl / Model

2024 / CRONOSS HPB 100X2,5MT

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

Yeni

İlan Tarihi

15.12.2024

PINAR ÇAR METAL İŞLEME VE TAKIM TEZGAHLARI

Telefon

0212 5496356

Adres

Türkiye / İstanbul / Başakşehir

Yetkili Kişi

Volkan ÖZGÜN

Telefon

0544 3020061

Açıklama Harita Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

TECHNICAL SPECIFICATIONS

A	BENDING LENGHT	:	2600	mm
	BENDING CAPACITIY	:	100	tons
C	STROKE	:	300	mm
	APPROACHING SPEED	:	160	mm/sec
	BENDING SPEED	:	10	mm/sec
	RETURNING SPEED	:	150	mm/sec
E	THROAT DEPTH	:	450	mm
D	DAYLIGHT	:	530	mm
B	DISTANCE BETWEEN WALLS	:	2150	mm
	X AXIS STROKE	:	650	mm
	X AXIS WORKING SPEED	:	200	mm/sec
L	LENGHT	:	3320	mm
W	WIDTH	:	2300	mm
H	HEIGHT	:	2400	mm
F	TABLE HEIGHT	:	900	mm
	MAIN MOTOR POWER	:	11	kW
	OIL TANK CAPACITY	:	190	lt
	APPROXIMATE WEIGHT	:	7800	kg

Optional features :
CONTROL UNIT	:	ESA 875W 3D Controller
BACKGAUGE	:	X - R AXIS BACKGAUGE
BACKGAUGE	:	X - R - Z1 - Z2 AXIS (works with ESA 875W)
Crowning System	:	Dener CNC Crowning System
HYDRAULIC PUMP	:	Eckerle Pump Difference
LUBRICATON	:	Motorised Lubrication
PUNCH CLAMP	:	Eurostamp Eurogrip 4389 Code Punch Clamp
PUNCH	:	Eurostamp 1260 code Punch
DIE	:	Eurostamp 2067 Code Die
Safety System	:	Fiessler Akas 2M Laser Finger Protection

Benzer İlanlar

CRONOSS 135 TON X 3 METRE HİDROLİK ABKANT PRES

Metal Forming Machines / Press Brakes

Standard Equipment • Y1, Y2, X, R axes • European type segmented blade and die • European type segmented blade and die holder • Heavy Type Front Gauges for 175 Tons and Above • 10″ Esa S 630 touch 2D programmable 4-axi

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS 150 TON X 3 METRE SERVO ABKANT PRES

Metal Forming Machines / Press Brakes

Standard SpecificationsEsa 875 W 3D (3D graphical CNC controller ) 2D offline programing system for CNC controller4 Axes (Y1, Y2, X, R)(X-R) Axes Sliding Front Arms with Height AdjustmentSide and Back Safety coversElectirc Cabinet Cooling SsystemManual Eu

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS 220 TON X 3 METRE HİDROLİK ABKANT PRES

Metal Forming Machines / Press Brakes

Standard Specifications CONTROL UNIT :ESA 640 CNC Controller 15" 2D Touch screen TOTAL AXIS :3 Axis (Y1, Y2, X) BACKGAUGE :(X) Axis FRONT SUPPOR

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS 100 TON X 3 METRE HİDROLİK ABKANT PRES

Metal Forming Machines / Press Brakes

Standard Specifications CONTROL UNIT :ESA 640 CNC Controller 15" 2D Touch screenTOTAL AXIS :3 Axis (Y1, Y2, X) BACKGAUGE :(X) Axis FRONT SUPPORT :Sliding Front Sup

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS 3MT X 100 TON SERVO ABKANT PRES

Metal Forming Machines / Press Brakes

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS 320 TON X 6MT HİDROLİK ABKANT PRES

Metal Forming Machines / Press Brakes

CONTROL UNIT :ESA S640 CNC Controller 15" 2D Touch screen TOTAL AXIS :4 Axis (Y1, Y2, X, R) BACKGAUGE :(X, R) Axis FRONT SUPPORT :Sliding Front Support Arms SAFETY :DSP-AP laser

Türkiye / İstanbul / Başakşehir

Fiyat Sor

CRONOSS HPB 320TON X 4MT HİDROLİK ABKANT PRES

Metal Forming Machines / Press Brakes

Standard Specifications CONTROL UNIT :ESA 640 CNC Controller 15" 2D Touch screen TOTAL AXIS :3 Axis (Y1, Y2, X) BACKGAUGE :(X) Axis FRONT SUPPORT :Slidin

Türkiye / İstanbul / Başakşehir

Fiyat Sor

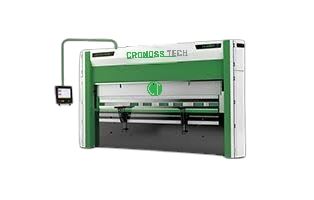

CRONOSS SPB 200 TON X 4MT SERVO ABKANT PRES

Metal Forming Machines / Press Brakes

Türkiye / İstanbul / Başakşehir

Fiyat Sor

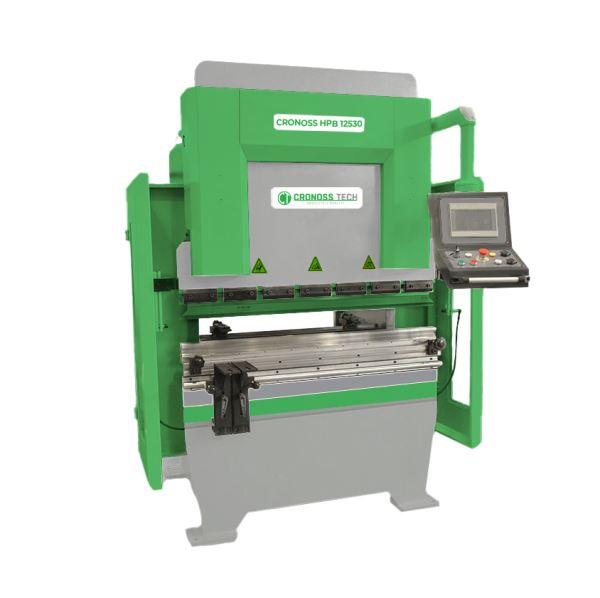

CRONOSS HPB CNC 12530 Abkant Pres
