Metal Forming Machines
>
Press Brakes

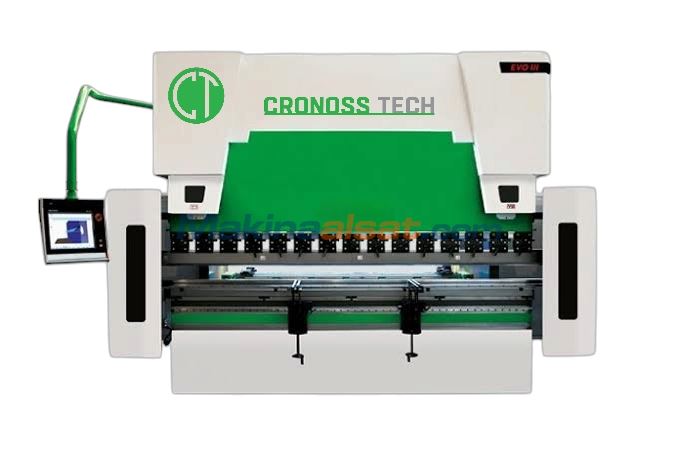

CRONOSS 100 TON X 3 METRE HİDROLİK ABKANT PRES

CRONOSS 100 TON X 3 METRE HİDROLİK ABKANT PRES
CRONOSS 100 TON X 3 METRE HİDROLİK ABKANT PRES
İlan No
229590
Marka
Cronoss Tech
Yıl / Model
2024 / CRONOSS HPB 100X3MT
Fiyat
Fiyat Sor
Sahibi
Satıcıdan
Durumu
Yeni
İlan Tarihi
15.12.2024
PINAR ÇAR METAL İŞLEME VE TAKIM TEZGAHLARI
Telefon
0212 5496356
Adres
Türkiye / İstanbul / Başakşehir
Yetkili Kişi
Volkan ÖZGÜN
Telefon
0544 3020061
Açıklama Harita Paylaş
Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza
Standard Specifications

CONTROL UNIT   :ESA 640 CNC Controller 15" 2D Touch screen
TOTAL AXIS     :3 Axis (Y1, Y2, X)
BACKGAUGE    :(X) Axis
FRONT SUPPORT  :Sliding Front Support Arms
SAFETY       :Back and Side Safety covers
CE NORM      :No
THROAT DEPTH   :450 mm
CROWNING     :No
TOP TOOL     :No
TOP TOOL CLAMPING:European Type Manual Punch Clamping (Promecam)
BOTTOM TOOL   :No
FOOT PEDAL    :Foot Pedal with Emergency Stop
ELECTRICAL SYSTEM :380 V, 50-60 Hz, 3 Ph
PACKAGING    :Aluminium Cover for overseas shipment

Options Specifications

CONTROLLER    :ESA 875 W  CNC Controller - 21"  - 3D
SAFETY       :DSP-AP Laser Finger Protection
BACKGAUGE    :(X, R) Axis
TOP TOOL     :Eurostamp 1281 Code Punch
TOP TOOL     :Quick Release Clamping
BOTTOM TOOL   :Eurostamp 2067 Code Die
CROWNING     :Motorized Crowning



Technical Specifications

Bending Length       (A)  :3050mm
Bending Capacity         :100tons
Distance Between Walls   (B)  :2550mm
Daylight Opening      (D)  :530mm
Throat Depth        (E)  :450mm
Y Axis Stroke        (C)  :300mm
Y Axis (Landing/Working/Return) Speeds:160/10/150mm/sec
Table Height           :900mm
X Axis Stroke           :750mm
Main Motor Power        :11kW
Oil Tank Capacity         :190lt
Length           (L)  :3770mm
Width           (W)  :2100mm
Height           (H)  :2500mm
Approximate Weight       :8500kg
