Metal Forming Machines
>
Press Brakes

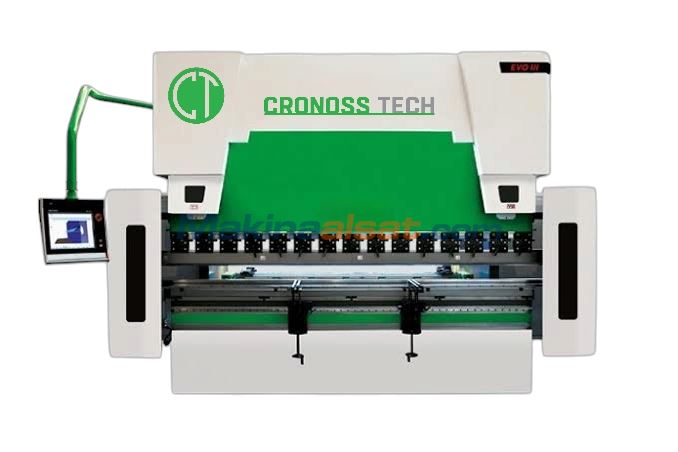

CRONOSS 220 TON X 3 METRE HİDROLİK ABKANT PRES

CRONOSS 220 TON X 3 METRE HİDROLİK ABKANT PRES
CRONOSS 220 TON X 3 METRE HİDROLİK ABKANT PRES
İlan No
229592
Marka
Cronoss Tech
Yıl / Model
2024 / CRONOSS HPB 220X3MT
Fiyat
Fiyat Sor
Sahibi
Satıcıdan
Durumu
Yeni
İlan Tarihi
15.12.2024
PINAR ÇAR METAL İŞLEME VE TAKIM TEZGAHLARI
Telefon
0212 5496356
Adres
Türkiye / İstanbul / Başakşehir
Yetkili Kişi
Volkan ÖZGÜN
Telefon
0544 3020061
Açıklama Harita Paylaş
Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza
Standard Specifications

CONTROL UNIT   :ESA 640 CNC Controller 15" 2D Touch screen
TOTAL AXIS     :3 Axis (Y1, Y2, X)
BACKGAUGE    :(X) Axis
FRONT SUPPORT  :Sliding Front Support Arms
SAFETY       :Back and Side Safety covers
CE NORM      :No
THROAT DEPTH   :450 mm
CROWNING     :No
TOP TOOL     :No
TOP TOOL CLAMPING:European Type Manual Punch Clamping (Promecam)
BOTTOM TOOL   :No
FOOT PEDAL    :Foot Pedal with Emergency Stop
ELECTRICAL SYSTEM :220 V, 3 Ph
PACKAGING    :Naylon Coverage

Options Specifications

CONTROLLER    :Esa 875 W 3D CNC Controller
BACKGAUGE    :(X, R) Axis
CROWNING     :Motorised Crowning
UPPER TOOL    :1281 eurostamp - 835x3 + 835 mm Segmented
BOTTOM TOOL   :2067 eurostamp - 835x3 + 835 mm Segmented
PACKAGING    :Overseas special packaging
SAFETY       :DSP-AP  laser finger protection + MCS Safety PLC


Technical Specifications

Bending Length       (A)  :3050mm
Bending Capacity         :220tons
Distance Between Walls   (B)  :2555mm
Daylight Opening      (D)  :600mm
Throat Depth        (E)  :450mm
Y Axis Stroke        (C)  :350mm
Y Axis (Landing/Working/Return) Speeds:140/10/130mm/sec
X Axis Stroke           :750mm
R Axis Stroke           :200mm
Table Height        (F)  :920mm
Main Motor Power        :22kW
Oil Tank Capacity         :300lt
Length           (L)  :3800mm
Width           (W)  :2290mm
Height           (H)  :3050mm
Approximate Weight       :11500kg
