Metal Forming Machines

Press Brakes

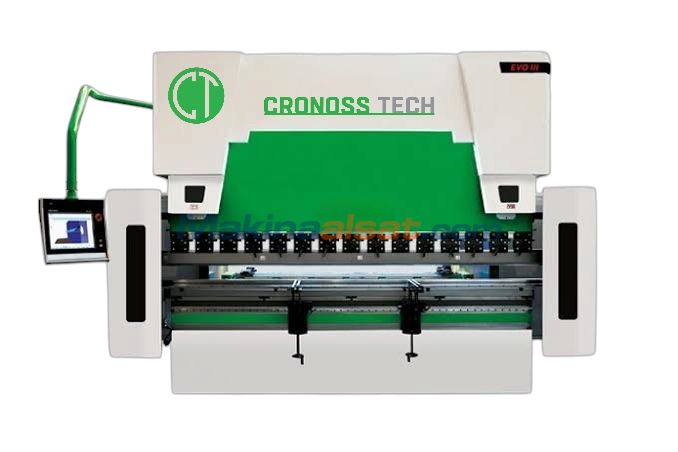

CRONOSS 135 TON X 3 METRE HİDROLİK ABKANT PRES

İlan No

229594

Marka

Cronoss Tech

Yıl / Model

2024 / CRONOSS HPB 135X3MT

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

Yeni

İlan Tarihi

15.12.2024

PINAR ÇAR METAL İŞLEME VE TAKIM TEZGAHLARI

Telefon

0212 5496356

Adres

Türkiye / İstanbul / Başakşehir

Yetkili Kişi

Volkan ÖZGÜN

Telefon

0544 3020061

Açıklama Harita Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Standard Equipment
• Y1, Y2, X, R axes
• European type segmented blade and die
• European type segmented blade and die holder
• Heavy Type Front Gauges for 175 Tons and Above
• 10″ Esa S 630 touch 2D programmable 4-axis control unit
• Greater throat depth 450 mm
• Higher cylinder stroke distance 350 mm
• Hoerbiger or Rexroth hydraulic system
• Foot pedal with emergency stop button.
• Front support arms.
• Side and rear door security guards

Technicial Specifications
TWIST LENGTH (MM):			3020MM
BENDING CAPACITY (TON):			135TON
LANDING SPEED (MM/sec):			160 MM/SN
RUNNING SPEED (MM/sec)			130 MM/SN
STROKE:			320 MM
THROAT DEPTH:			450MM
LENGTH :			3745 MM
WIDTH :			2280 MM
PLATE HEIGHT:			2835 MM
MAIN ENGINE:			15 KW
WEIGHT :			9600 KG
