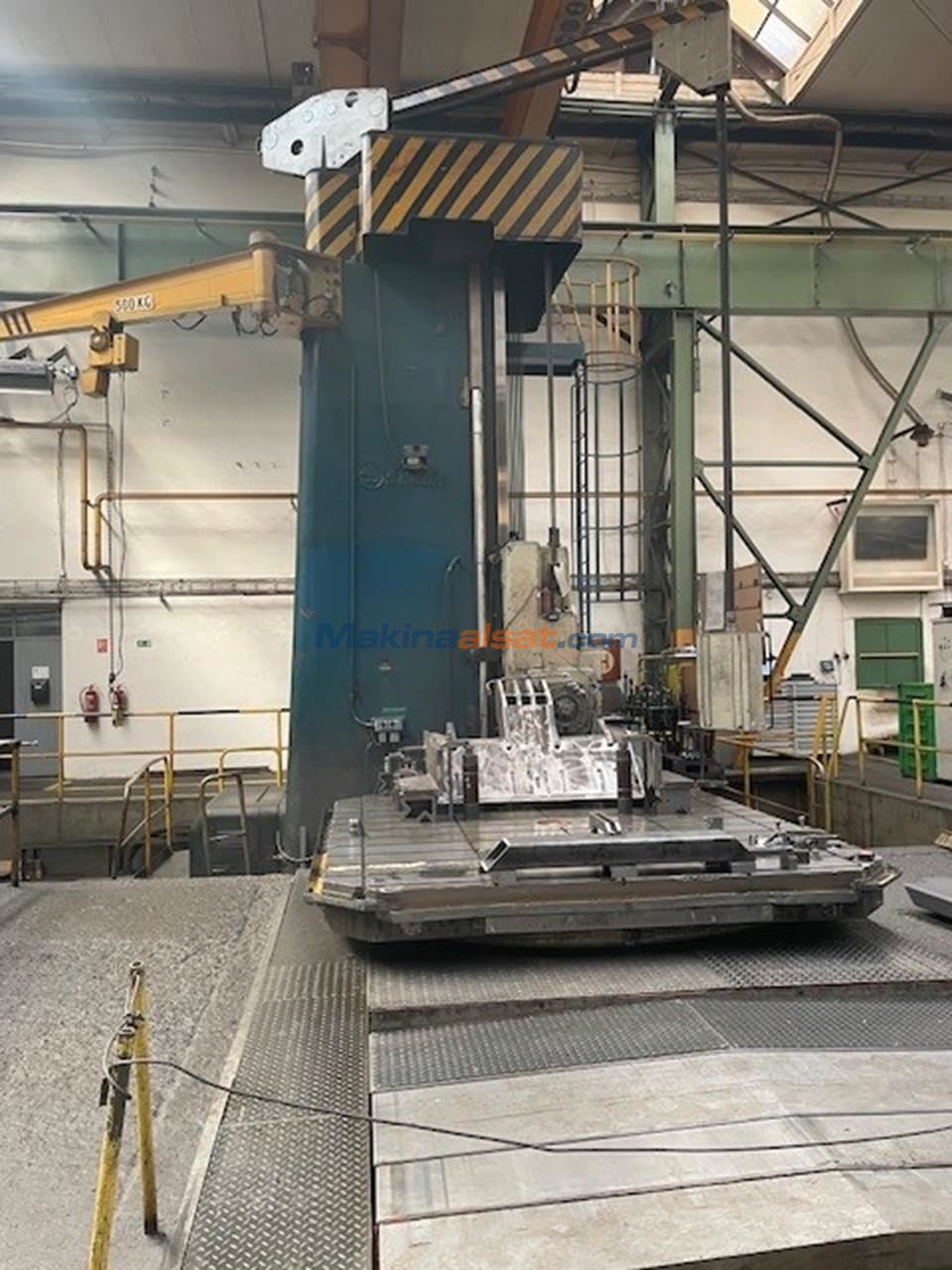

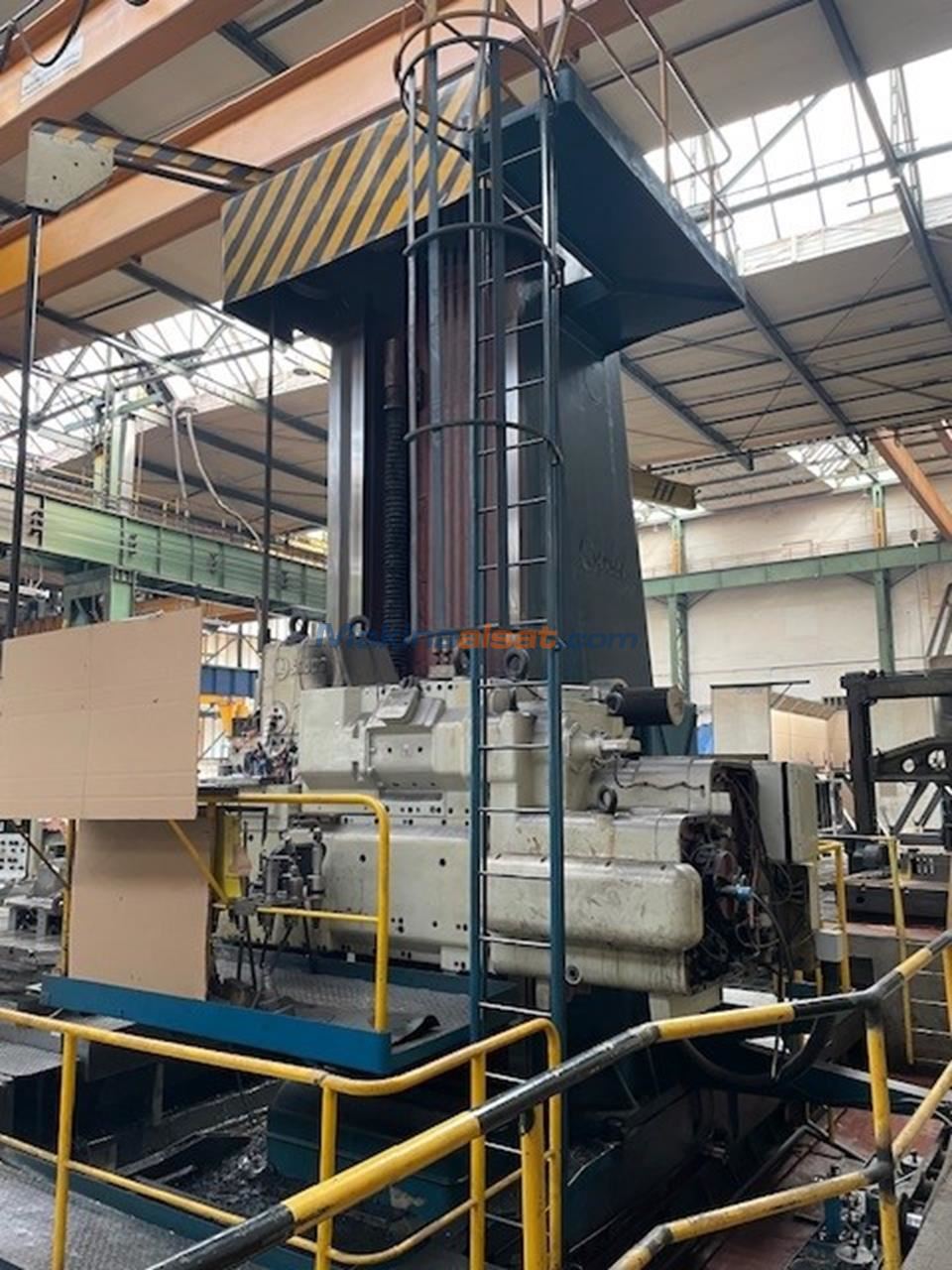

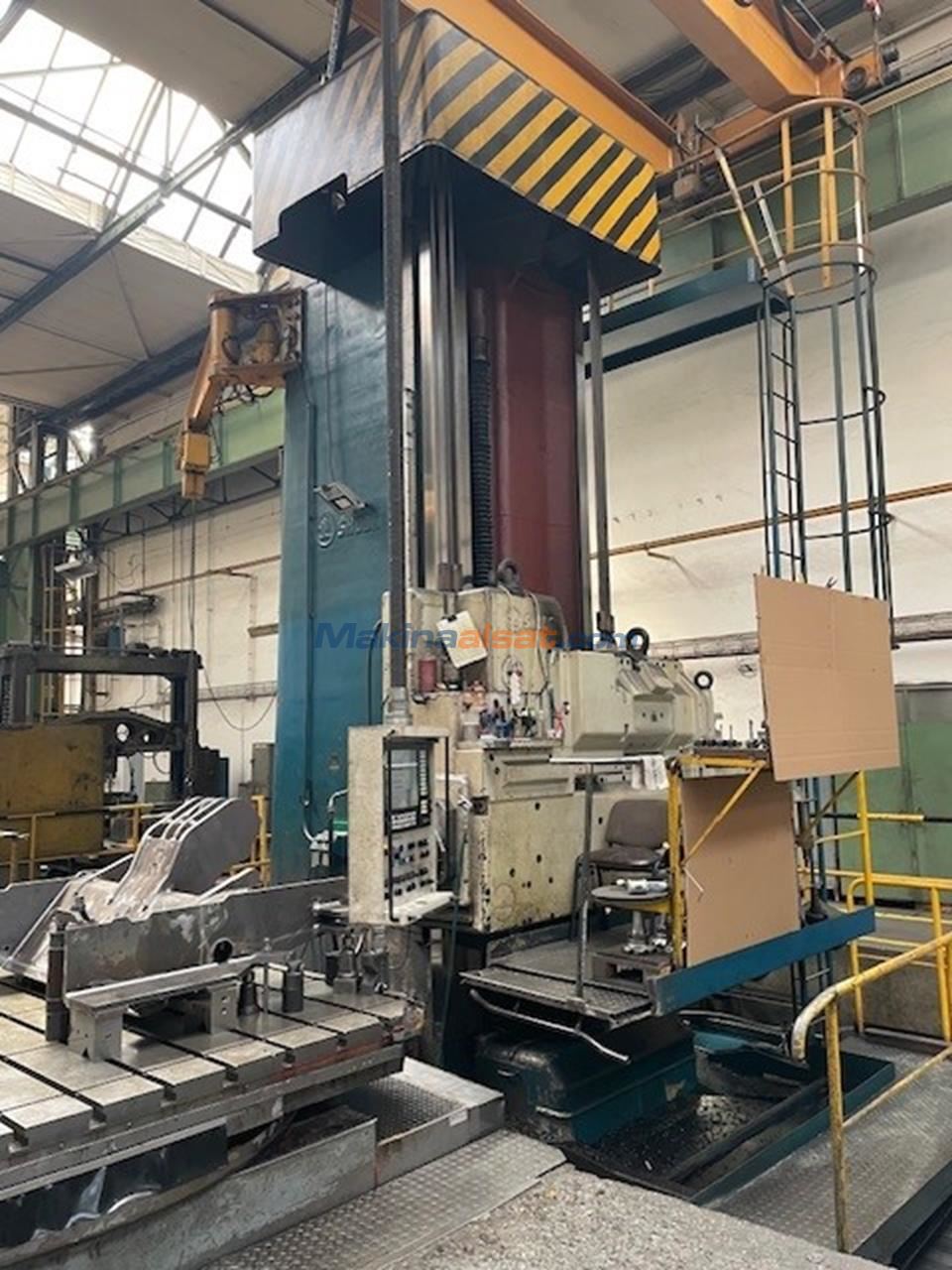

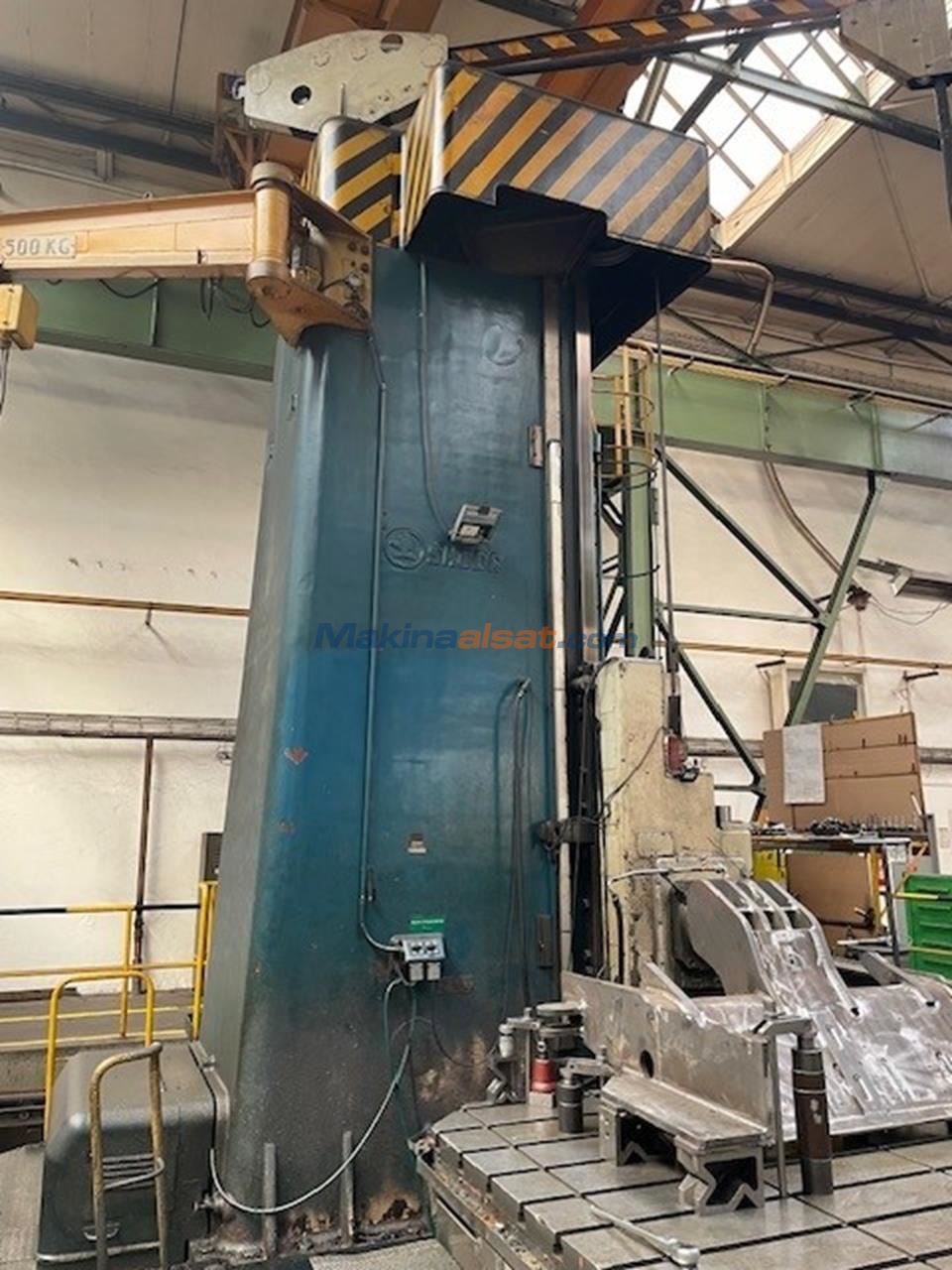

Table Boring Machine ŠKODA W 160 H

İlan No

231915

Marka

ŠKODA

Yıl / Model

1979 / W 160 H

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

04.08.2025

Amaron

Telefon

+42 0776115345

Adres

Czech Republic / Brno

Yetkili Kişi

Markéta Vítová

Telefon

+42 0776115345

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Catalog No. : 8207

Type: W 160 H

Producer: ŠKODA

Made in: 1979

Characteristic:

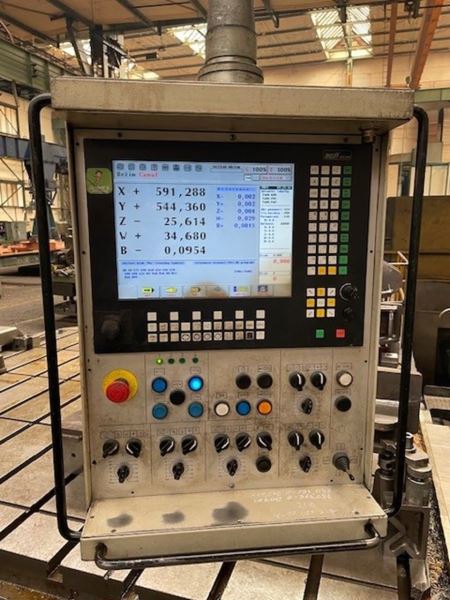

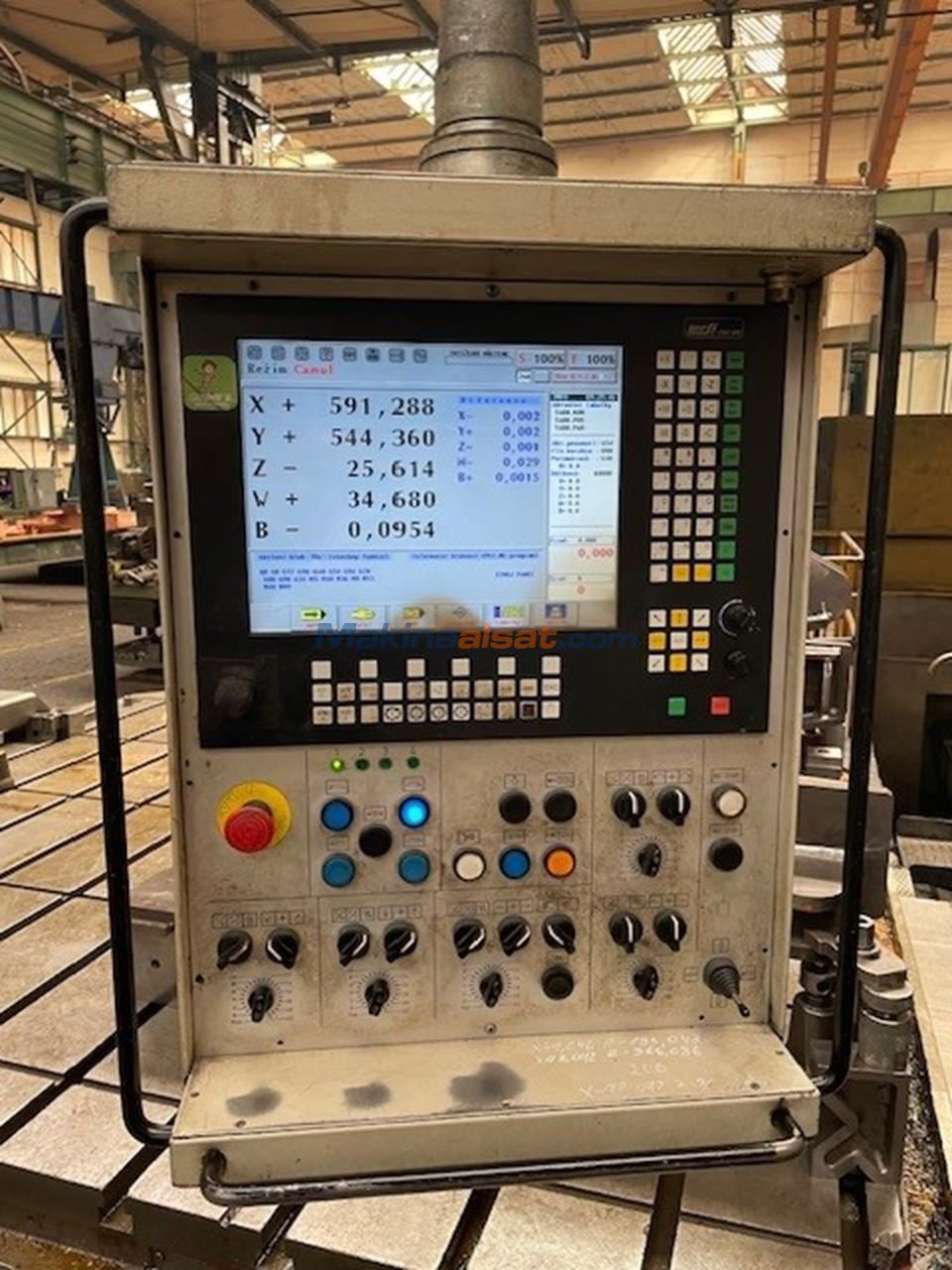

Control system: Mefi

Length of the working table: 3150 mm

Width of the working table: 2800 mm

Maximum rotary speed of the spindle: 1200 1/min

X-Axis travels: 3000 mm

Y-Axis travels: 2500 mm

Z-Axis travels: 1400 mm

W-Axis travels: 1250 mm

Spindle diameter: 160 mm

Taper: ISO 50

Machine height: 7620 mm

Machine length: 5900 mm

Machine width: 12440 mm

Machine weight: 68000 kg
