Metal Cutting Machines

5 Axis Machining Centre

Machining Centre (Universal)

İlan No

234604

Marka

Tongtai

Yıl / Model

2008 / Topper TMV-510T

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

21.07.2025

Amaron

Telefon

+42 0776115345

Adres

Czech Republic / Brno

Yetkili Kişi

Markéta Vítová

Telefon

+42 0776115345

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Catalog No. : 8503

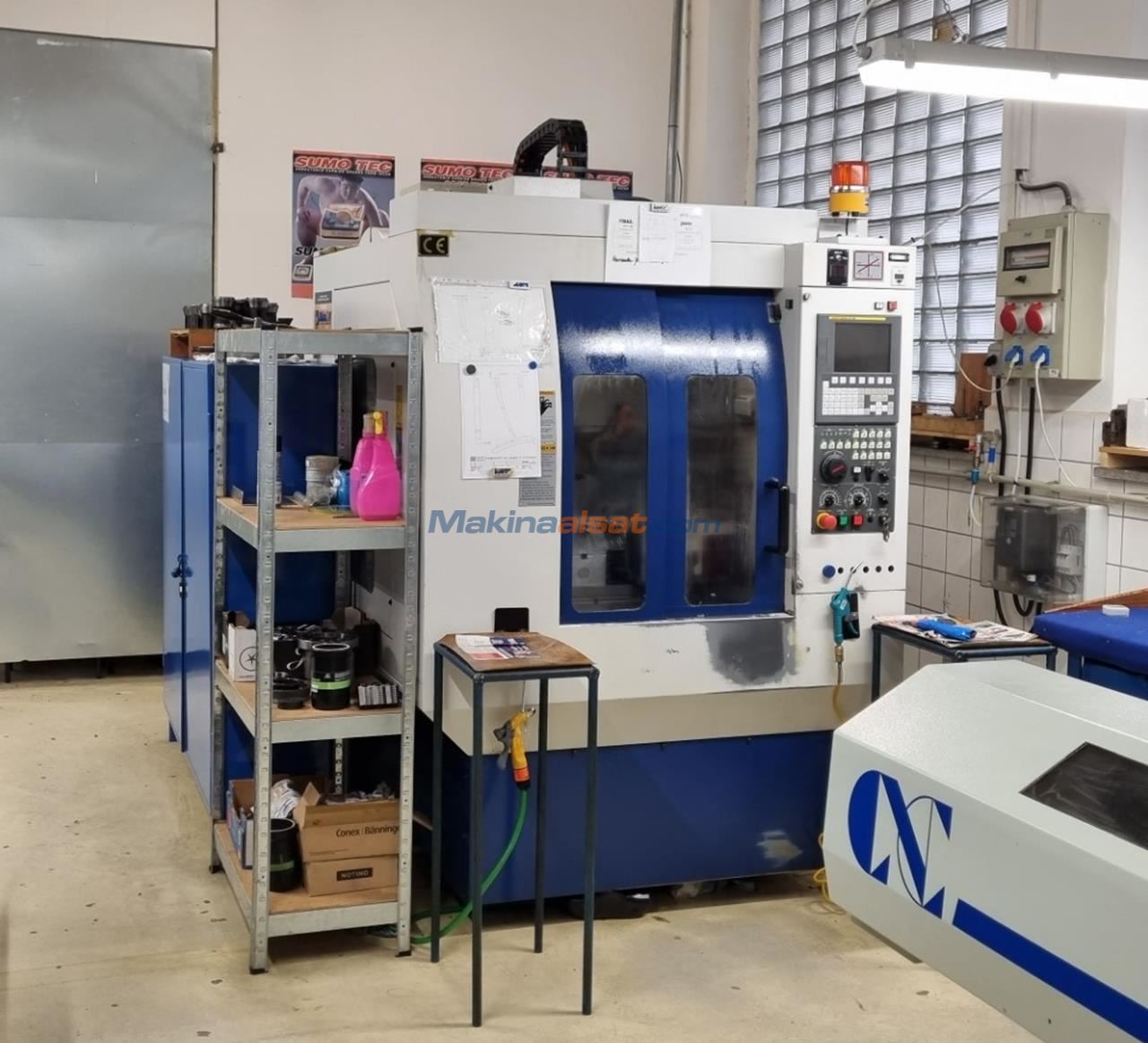

Type: Topper TMV-510T

Producer: Tongtai

Made in: 2008

Characteristic:

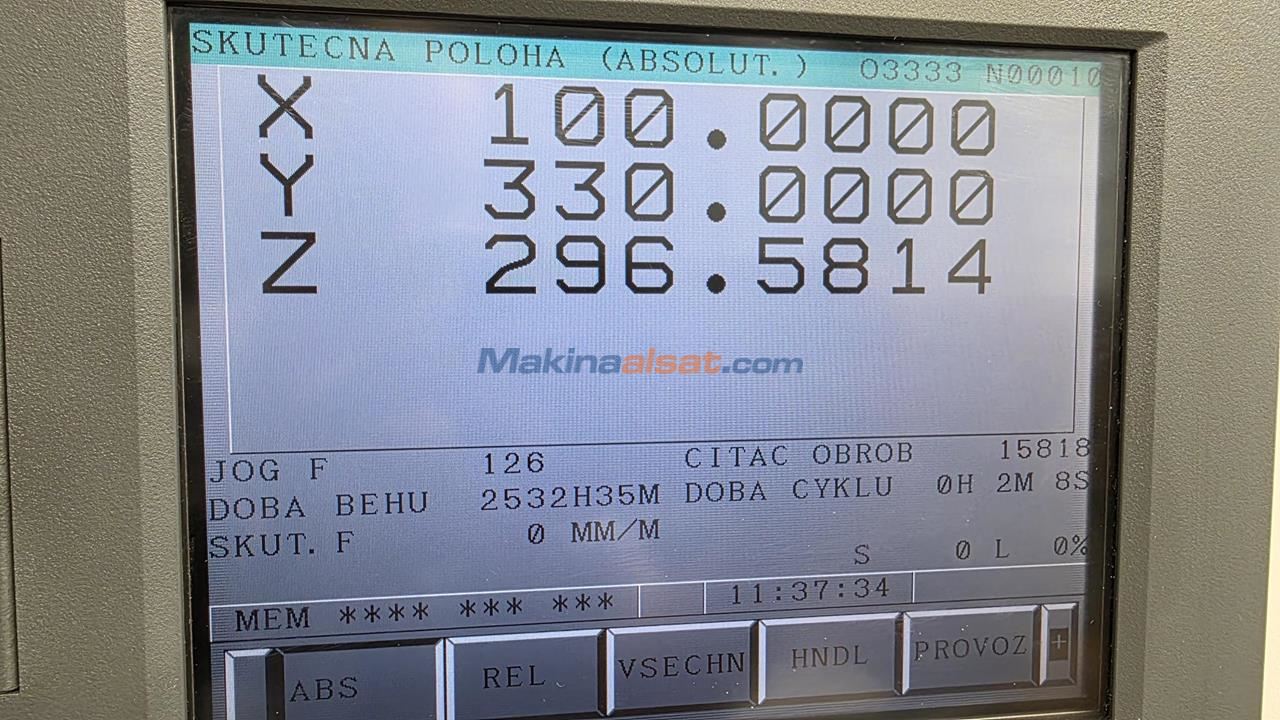

Control system: Fanuc 0i-MF Plus

Hours on: 2532 h

Length of the working table: 600 mm

Width of the working table: 360 mm

X-Axis travels: 510 mm

Y-Axis travels: 360 mm

Z-Axis travels: 300 mm

Block speed: 8000 1/min

Power of the spindle: 5.5 kW

Taper: BT-30

Maximum number of tools: 20 pcs

Number of axes: 5 pcs

Rapid traverse X/Y/Z: 48 m/min

Machine height: 2310 mm

Machine length: 2700 mm

Machine width: 1600 mm

Machine weight: 2000 kg

Equipment:

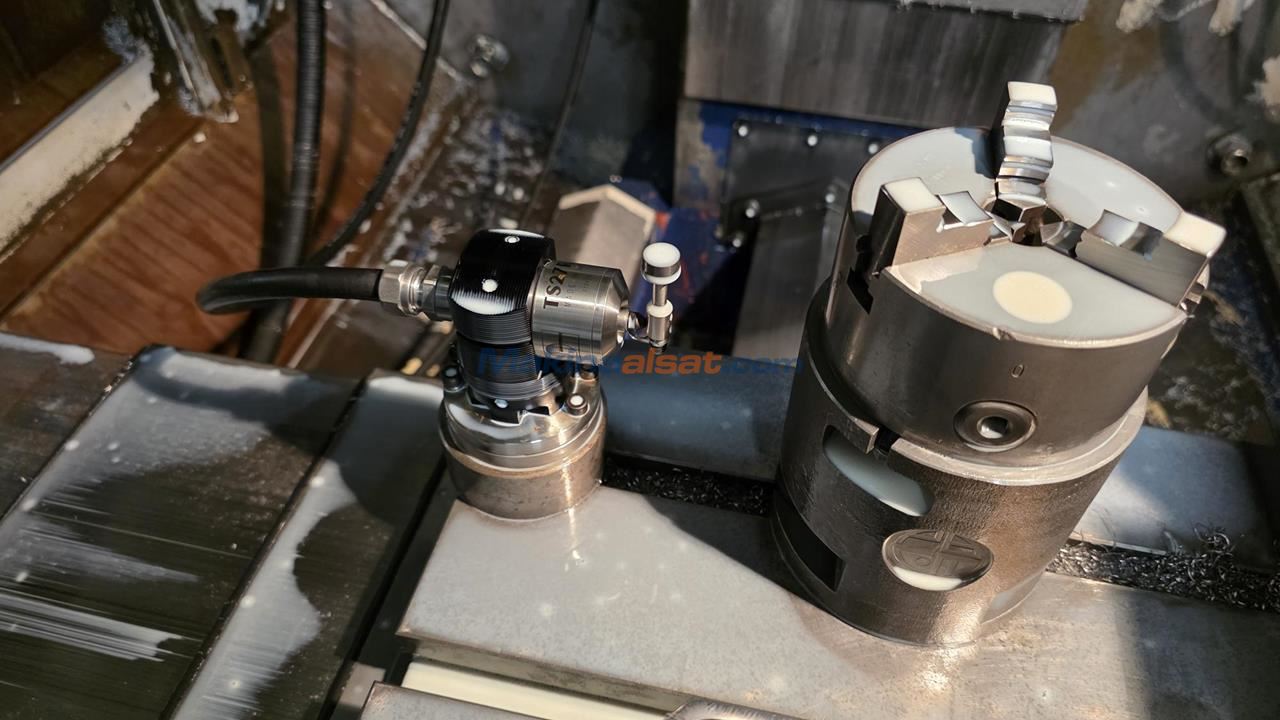

Tool probe Renishaw

Chuck

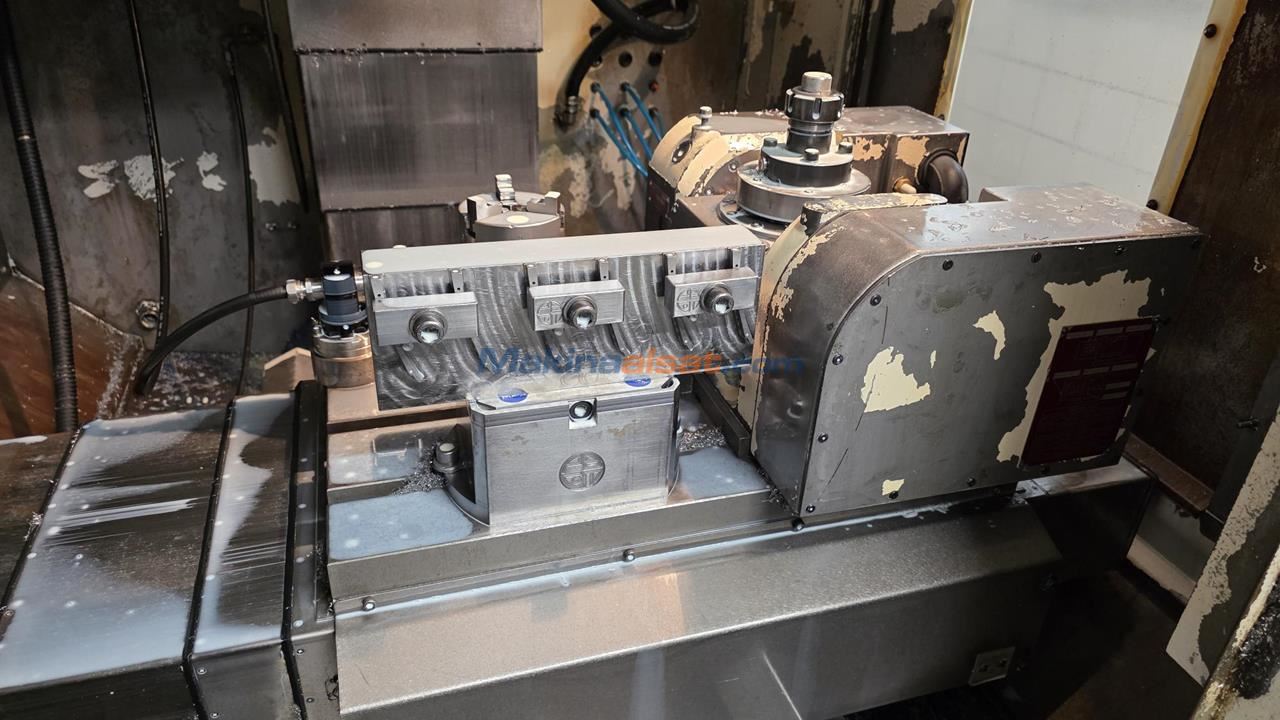

CNC controlled 5th axis TSUDAKOMA TN-101
