Talaşlı İmalat Makinaları

Dişli / Profil Taşlama

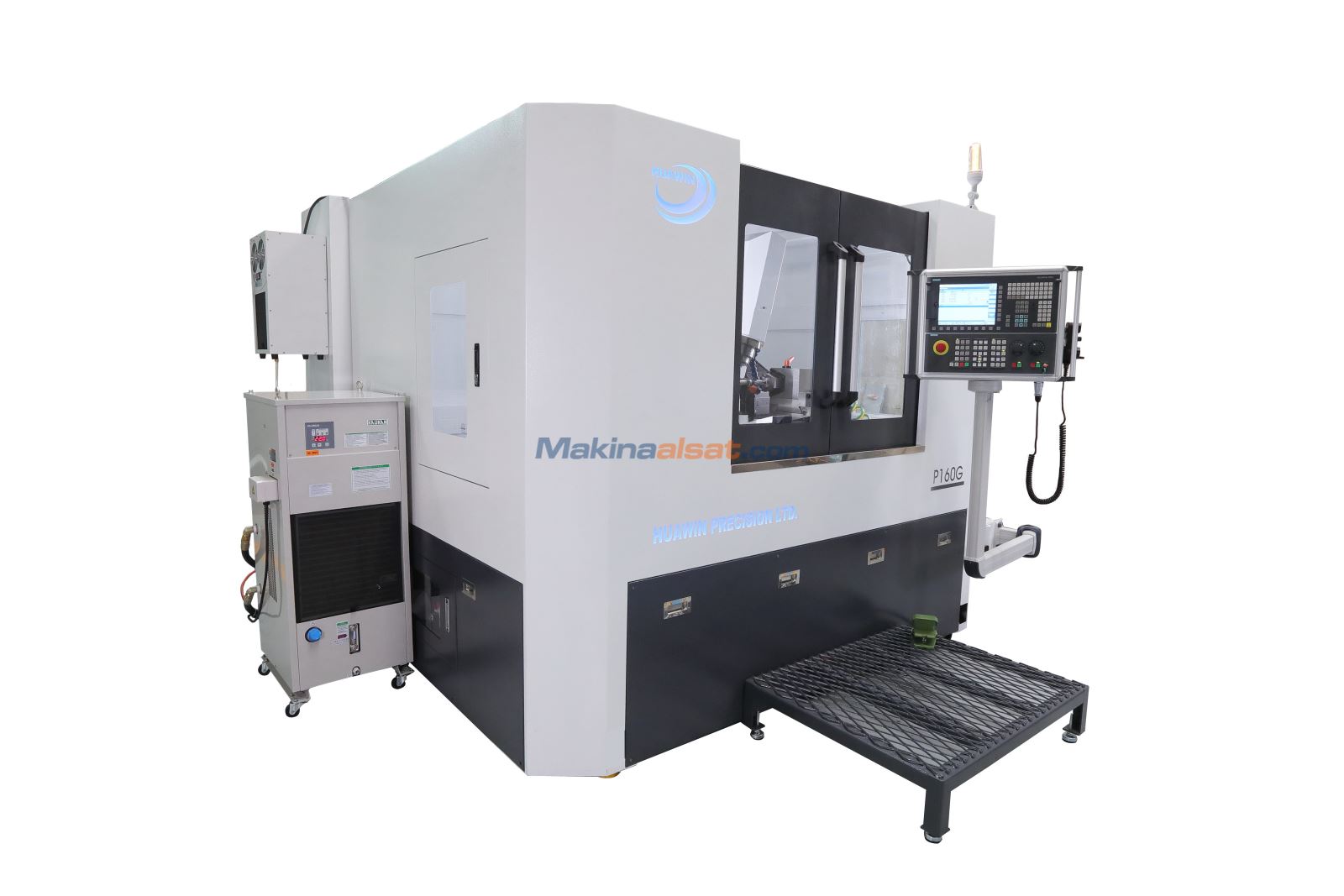

GEAR PROFILE GRINDING MACHINE PG160

İlan No

200100

Marka

Huawin

Yıl / Model

2022 / PG160

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

Yeni

İlan Tarihi

02.06.2025

Müller Machines SA

Telefon

0532 701 28 39

Adres

Switzerland / Brügg

Yetkili Kişi

Kenan ŞAHİN

Telefon

0532 701 28 39

Telefon

+41 79 222 7 555

Açıklama Harita Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

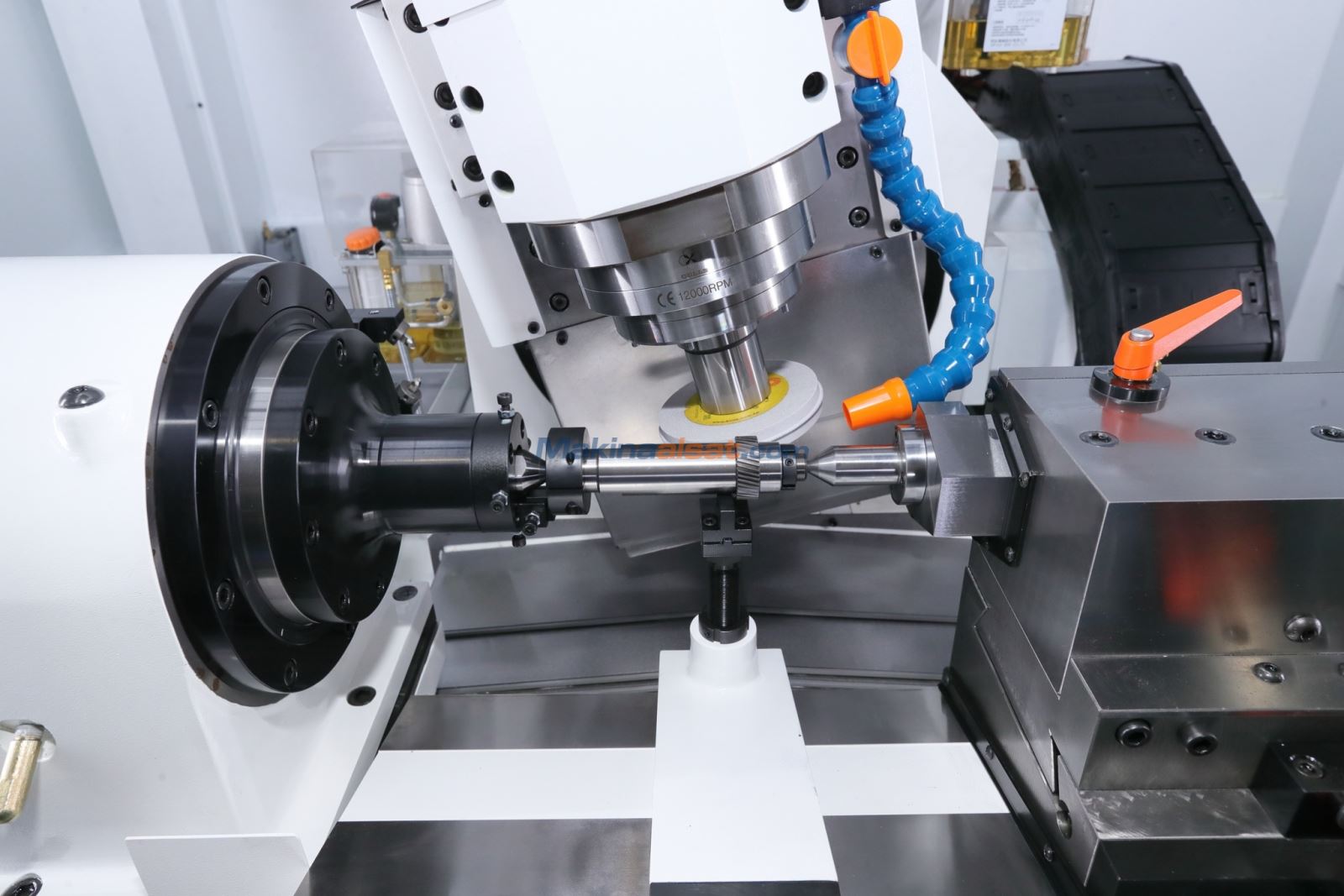

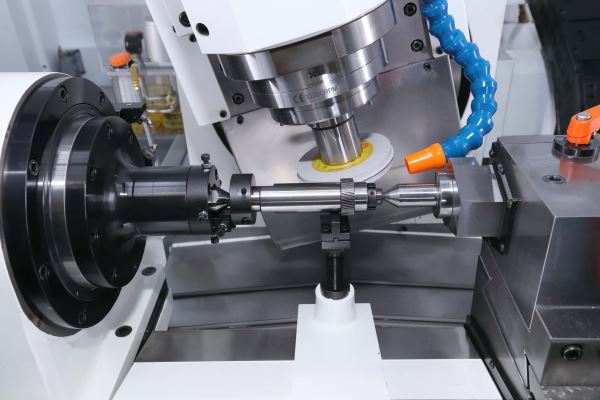

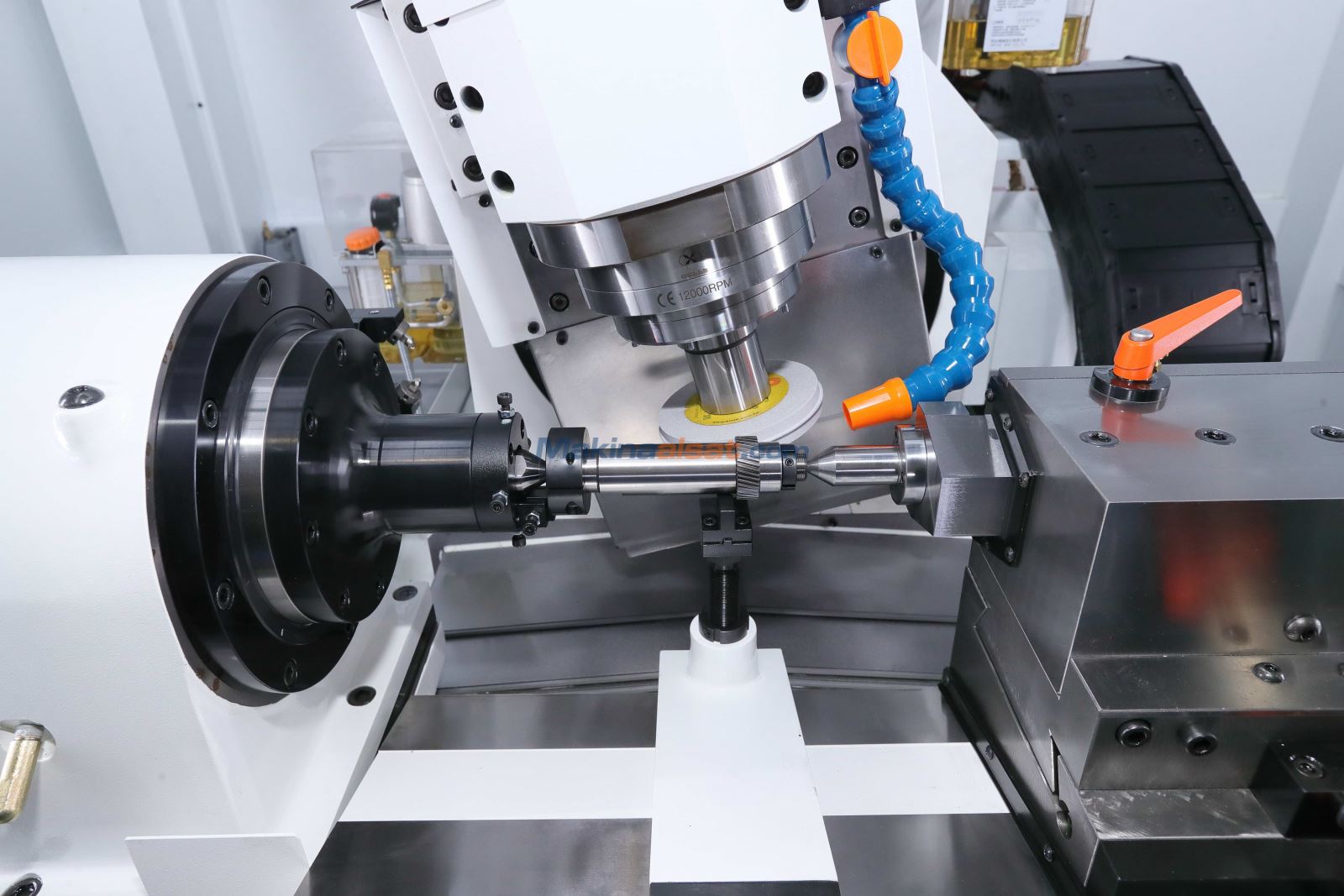

Precision profile using rotary dresser.
Highly rigid box-type bed.
Equipped with HMI for increasing operational efficiently.
Linear motor X & Z-axis with zero-backlash.
DD motor of C-axis with zero-backlash.

Workpiece
	PG160	PG400
Min. Gear major diameter	Φ 20 mm	Φ 30 mm
Max. Gear outer diameter	160 mm	400 mm
Max. Module	4	10
Min .Module	0.5 mm
Number of teeth	1~999

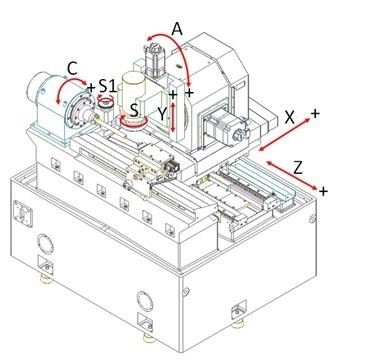

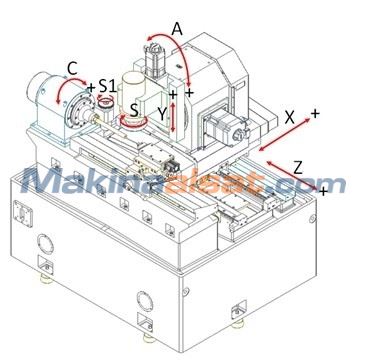

Stroke
X-axis	170 mm	250 mm
Y-axis	60 mm	100 mm
Z-axis	450 mm	800 mm
C-axis	±360°
A-axis	±45°
CC motor (DD motor)	500 N.m	1300 N.m
Center distance (min./max.)	80/1000 mm
Spindle power	17kW
Spec. of spindle	170G
Outer diameter of grinding wheel	Φ50~Φ220	Φ50~Φ220	Φ210~Φ350
Max .speed of spindle	10000rpm	10000rpm	4000rpm
Rotary dresser	Φ13516WR0.3
Air pressure source rated flow	30 L/min
pressure	0.5 Mpa
Power capacity	< 20 KVA
Dimensions (L WH )	260023702155
Machine Weight

Benzer İlanlar

ABA MULTILINE 1507 A Profil Taşlama

Talaşlı İmalat Makinaları / Dişli / Profil Taşlama

stock no. :22580Machine's group :Profil grinding machineType :ABA MULTILINE 1507 AModel :2013Teknik Detay

Switzerland / Brügg

Fiyat Sor

HUAWIN PG400 Dişli / Profil Taşlama

Talaşlı İmalat Makinaları / Dişli / Profil Taşlama

stock no. :22347Machine's group :CNC Gear grinding machineType :HUAWIN PG400Controller :HUAWIN (FANUC / SIEMENS optional)LINK

Switzerland / Brügg

Fiyat Sor

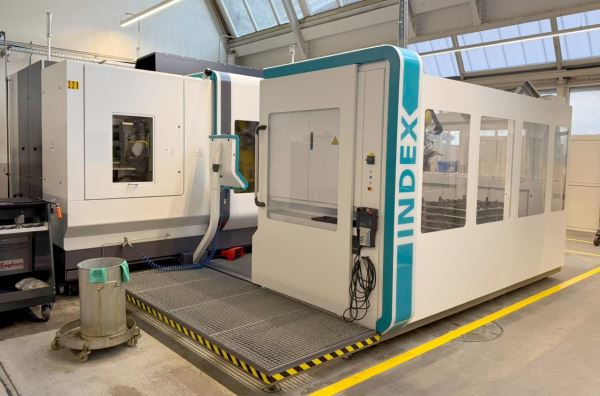

INDEX G 420

Talaşlı İmalat Makinaları / Cnc Torna ve Frezeleme Merkezi

stock no. :23112Machine's group :CNC Turning-Milling-Drilling CenterType :INDEX G 420Controller :SIEMENS 840 D Solution LineTeknik DetayVideo

Switzerland / Brügg

Fiyat Sor

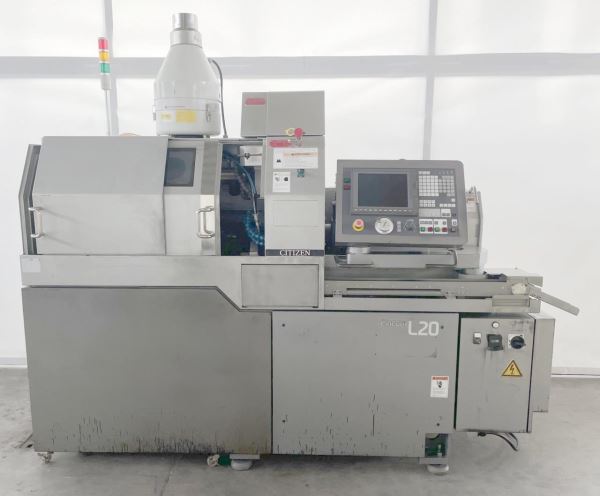

CITIZEN CINCOM L 20 VIII CNC Torna
