Talaşlı İmalat Makinaları

5 Eksen CNC İşleme

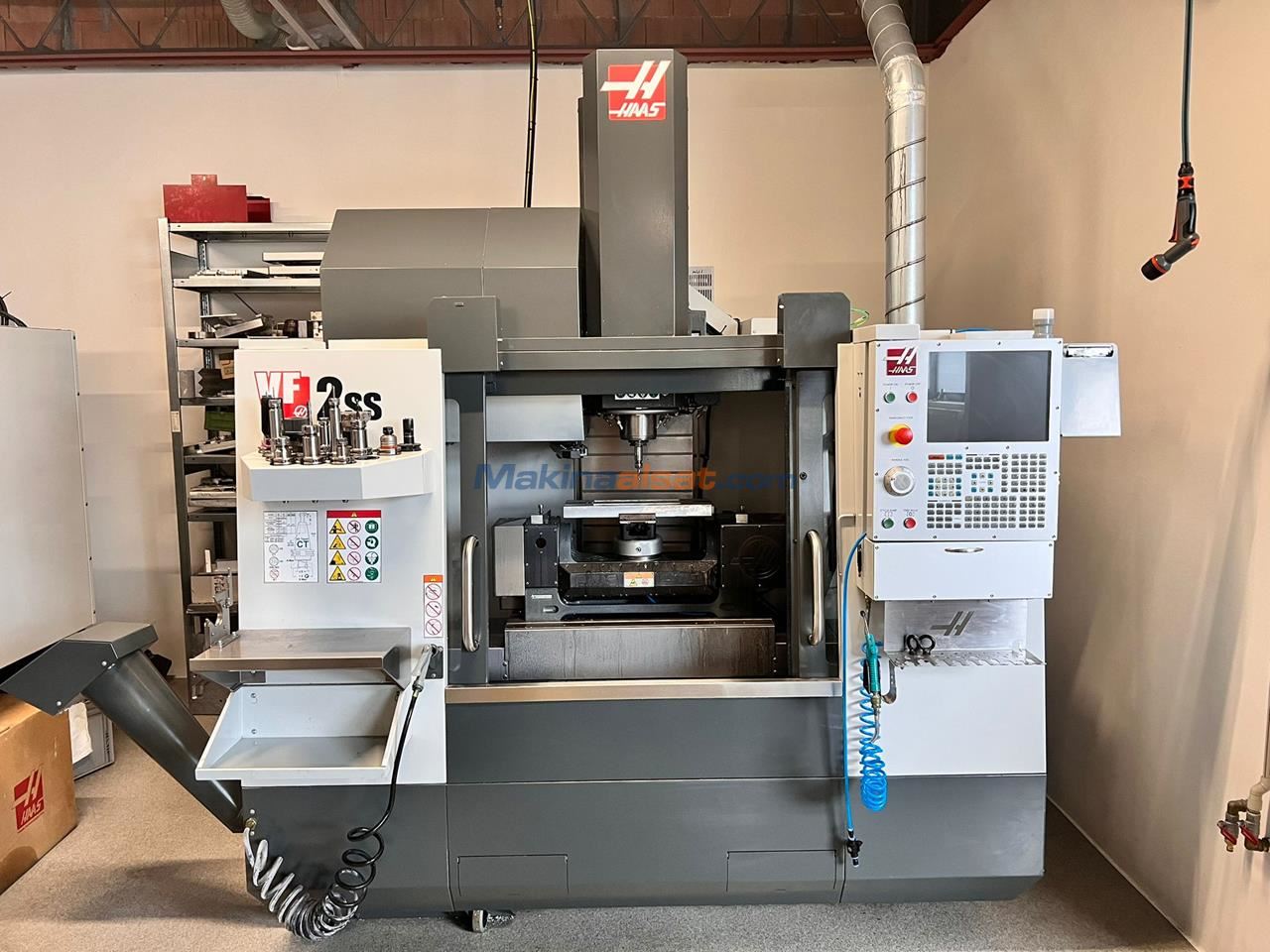

Machining Centre (Universal) HAAS VF 2SS

İlan No

231928

Marka

Haas

Yıl / Model

2019 / VF 2SS

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

26.05.2025

Amaron

Telefon

+42 0776115345

Adres

Czech Republic / Brno

Yetkili Kişi

Markéta Vítová

Telefon

+42 0776115345

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Catalog No. : 6849

Type: VF 2SS

Producer: HAAS

Made in: 2019

Characteristic:

Total hours: 6825 h

Hours on: 2885 h

Length of the working table: 914 mm

Width of the working table: 356 mm

Maximum table load (evenly distributed): 680 kg

Number of axis: 5 pcs

Maximum rotary speed of the spindle: 12000 1/min

Minimum distance from the table to the spindle axis: 102 mm

Maximum distance from the table to the spindle axis: 610 mm

X-Axis travels: 762 mm

Y-Axis travels: 406 mm

Z-Axis travels: 508 mm

Power of the spindle: 22.4 kW

Equipment:

Chuck SK40 (10x)

Probe Renishaw
