Talaşlı İmalat Makinaları

CNC Torna

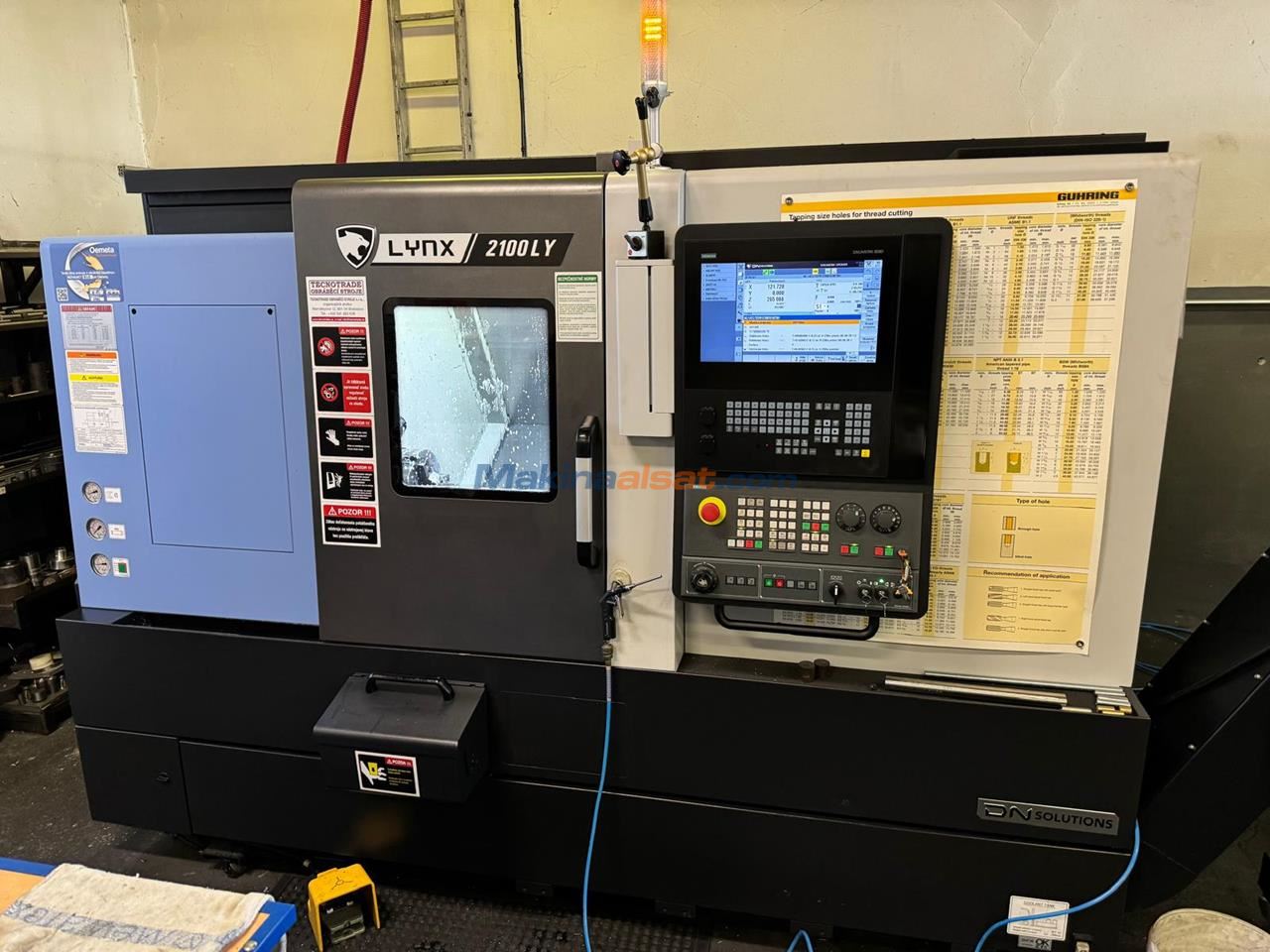

CNC lathe DOOSAN Lynx 2100 LYB

İlan No

231937

Marka

Doosan

Yıl / Model

2022 / Lynx 2100 LYB

Fiyat

Fiyat Sor

Sahibi

Satıcıdan

Durumu

2. El

İlan Tarihi

26.05.2025

Amaron

Telefon

+42 0776115345

Adres

Czech Republic / Brno

Yetkili Kişi

Markéta Vítová

Telefon

+42 0776115345

Açıklama Paylaş

Mesaj Gönder Tüm İlanları Favoriye Ekle Mağaza

Catalog No. : 7971

Type: Lynx 2100 LYB

Producer: Doosan

Made in: 2022

Characteristic:

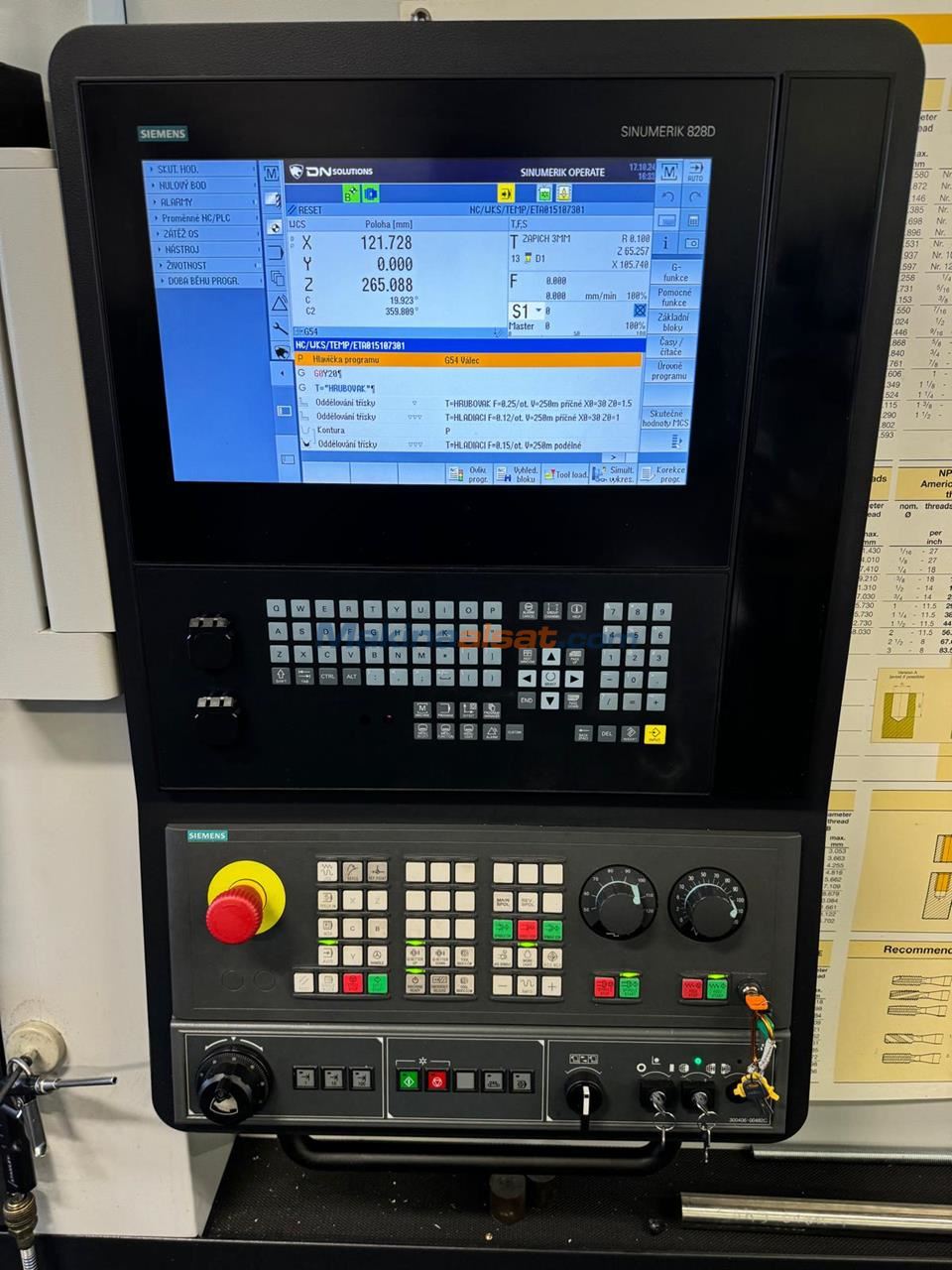

Control system: Siemens Sinumerik 828D

Maximum-turning length: 510 mm

Max. turning diameter: 300 mm

Maximum travel length in the X-axis: 205 mm

Maximum travel length in the Y-axis: 105 mm

Maximum feedrate in the Z axis: 560 mm

Maximum power of the main spindle: 15 kW

Maximum spindle speed: 6000 1/min

Length: 2880 mm

Width: 1711 mm

Height: 1921 mm

Weight: 3900 kg

Equipment:

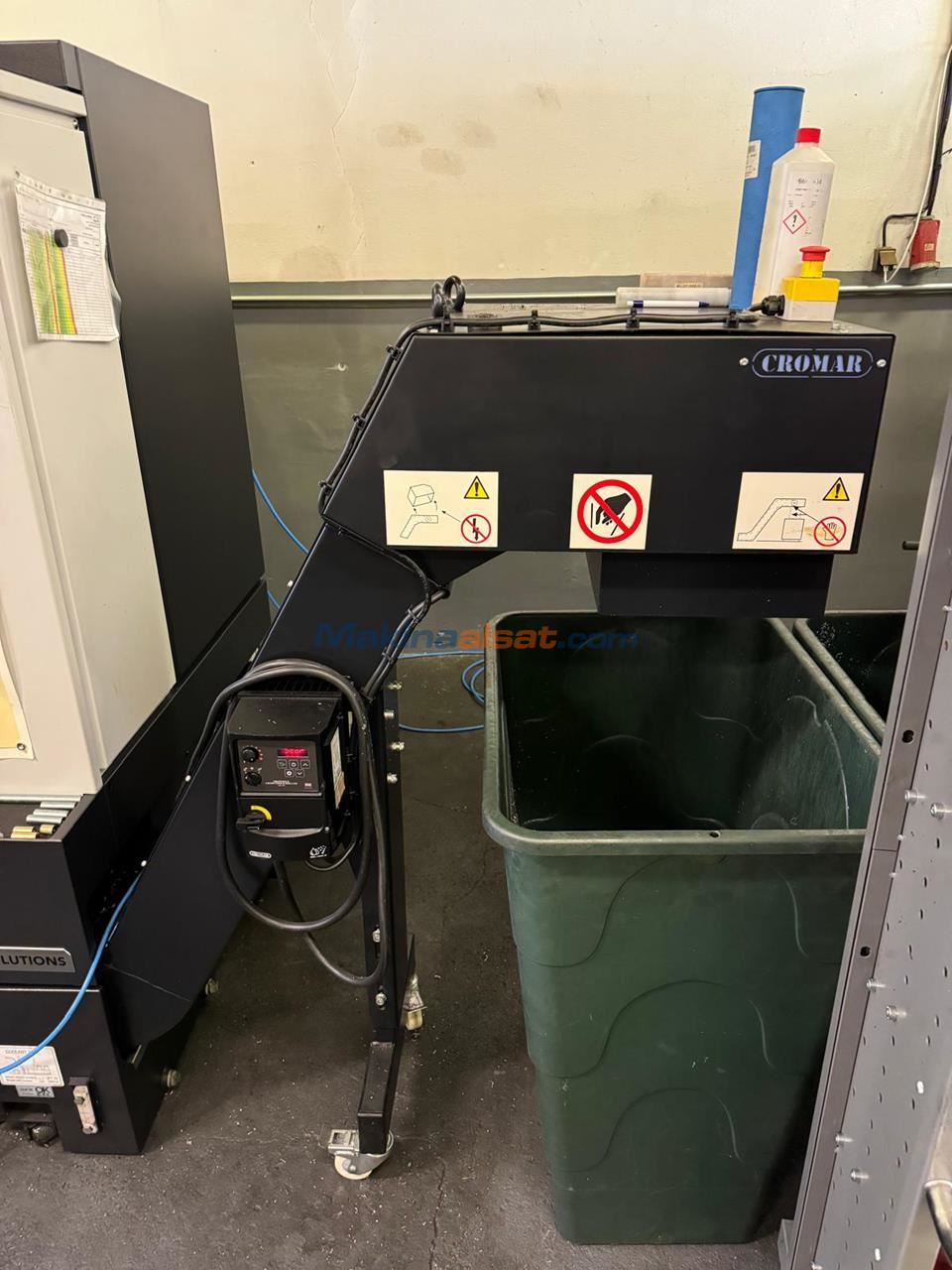

Chip conveyor

Y-axis

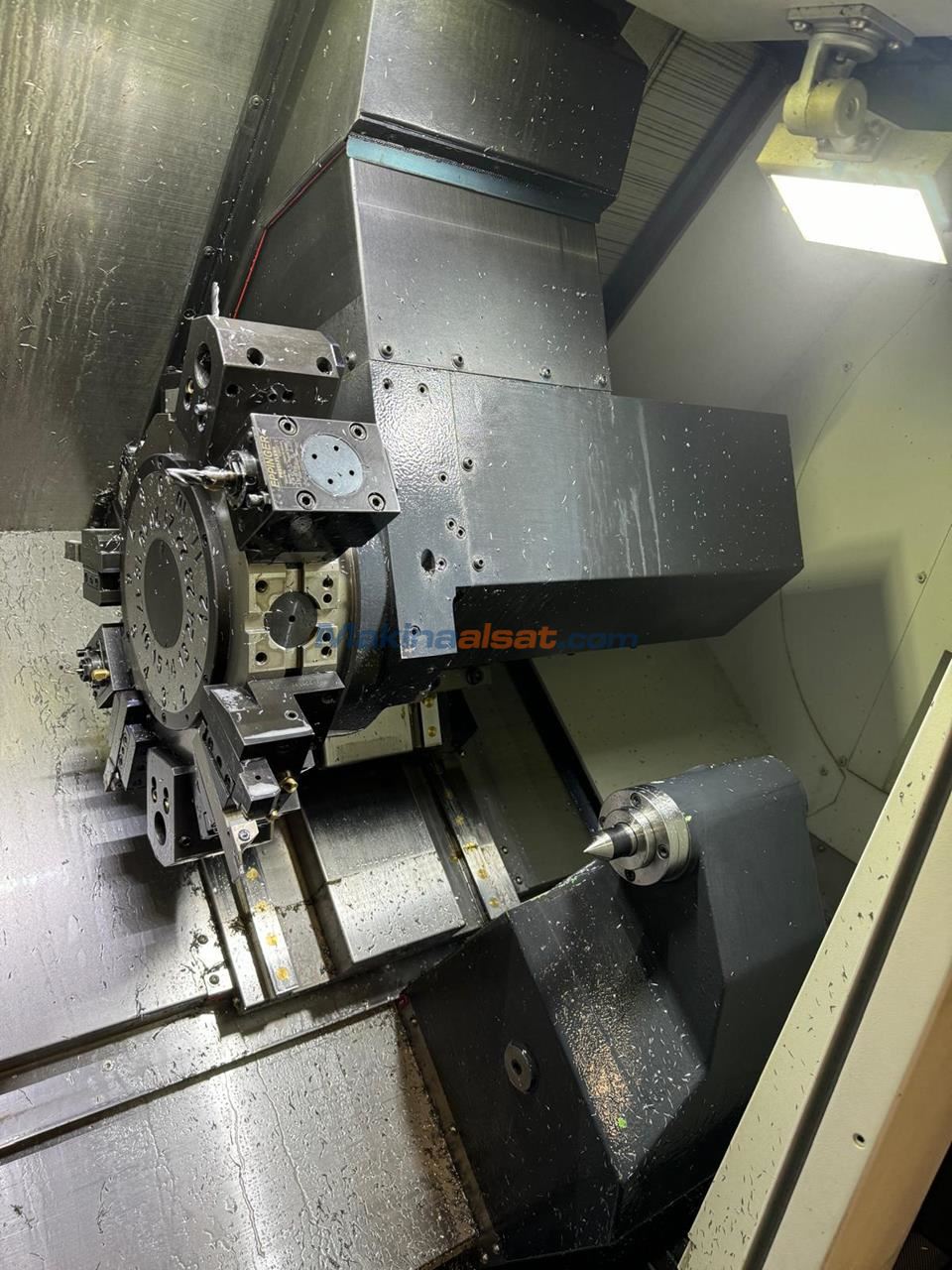

Hydraulic tailstock

Driven Tools (in X and Y axis)

24 tools
