Metal Forming Machines
>
Press Brakes

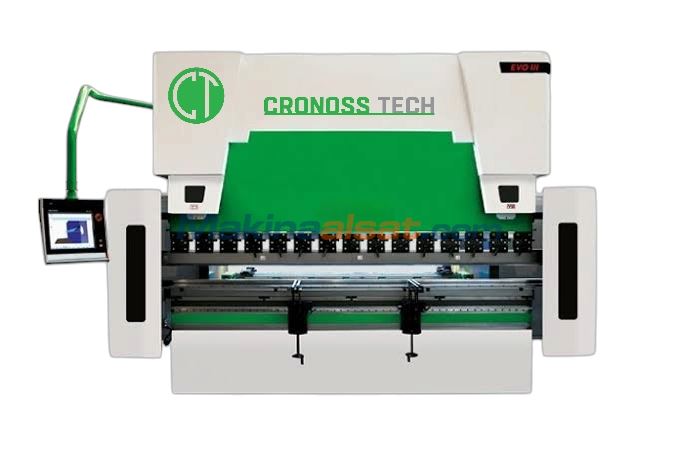

CRONOSS 320 TON X 6MT HİDROLİK ABKANT PRES

CRONOSS 320 TON X 6MT HİDROLİK ABKANT PRES
1/1
CRONOSS 320 TON X 6MT HİDROLİK ABKANT PRES
Ad No
229585
Brand
Cronoss Tech
Year / Type
2024 / HPB 320X6MT
Price
Ask Price
Owner
From Seller
Status
New
Ad Date
15.12.2024
PINAR ÇAR METAL İŞLEME VE TAKIM TEZGAHLARI
Phone
0212 5496356
Address
Türkiye / İstanbul / Başakşehir
Contact
Volkan ÖZGÜN
Phone
0544 3020061
Description Map Share
Send Message All Ads Add Favorites Store
CONTROL UNIT    :ESA S640 CNC Controller 15" 2D Touch screen
TOTAL AXIS     :4 Axis (Y1, Y2, X, R)
BACKGAUGE     :(X, R) Axis
FRONT SUPPORT   :Sliding Front Support Arms
SAFETY       :DSP-AP  laser finger protection + MCS Safety PLC  (manual)
CE NORM      :yes
THROAT DEPTH   :450 mm
CROWNING     :Motorised Crowning
TOP TOOL      :No
TOP TOOL CLAMPING :European Type Manual Punch Clamping (Promecam)
BOTTOM TOOL    :No
FOOT PEDAL     :Foot Pedal with Emergency Stop
ELECTRICAL SYSTEM :380 V, 50-60 Hz, 3 Ph
PACKAGING     :Plastic Cover


Options Specifications

BACKGAUGE     :(X, R, Z1, Z2) Axis
BACKGAUGE     :Additional Backgauge finger
CONROLLER     :ESA S875W - 21" 3D Touch screen
UPPER TOOL     :1281 Code eurostamp punch
BOTTOM TOOL    :2067 Code eurostamp die
COOLER       :Hydraulic oil cooler
SAFETY       :Fiessler AKAS 2P laser finger protection +FPSC



Bending Length       (A)  :6050mm
Bending Capacity          :320tons
Distance Between Side Frames (B)  :5100mm
Daylight Opening       (D)  :650mm
Throat Depth        (E)  :450mm
Y Axis Stroke         (C)  :400mm
Y Axis (Landing/Working/Return) Speeds:80/10/80mm/sec
X Axis Stroke           :750mm
R Axis Stroke           :200mm
Table Height         (F)  :920mm
Main Motor Power         :30kW
Oil Tank Capacity          :400lt
Length           (L)  :6815mm
Width           (W)  :2280mm
Height           (H)  :3110mm
Approximate Weight        :23100kg
